dflibg/js dfirefly is an SDK for dataflow applications built using the dflibg/js library.
dfirefly SDK includes panels to inspect dataflow components (datastreams, connections, etc.), monitor datastreams, set dataflow thread breakpoints, audit and analyze the compiled application (dataflow lint, cluster-analysis, dataflow graphing) and a dataflow log/console.

WHAT ARE dflibg/js-BASED APPLICATIONS -

dflibg/js-based dataflow applications are built around
    - datastreams,
    - the nodes that generate and observe them,  attach those datastreams to
         document objects, servers, proxies, windows, datastores, etc.,
    - the dataflow engines (modules) built from them, [including general modules, dynamic
         server and re-usable dataflow library modules]
    - datastores to which datastreams may be sourced and sinked passively or reactively, and
    - instantiable models - from which a document or sections of it may be composed -
         models integrate document section prototypes (templates), an initiator dataflow
         engine to initialize the prototype when attaching a copy to the DOM,  a
        CodeBehind controller module for those model instances, a private datastore
        per model instance and a separate datastore shared by all instances of that model.

WHAT IS THE dflibg/js SDK / WHAT CAN IT DO -

TOOLS:

dfirefly - examine/inspect:  has 4 sub-panels:
    examine - inspects modules, nodes, their datastreams and dataflows.
    packages - inspects models/model instances, datastores and datastore views.

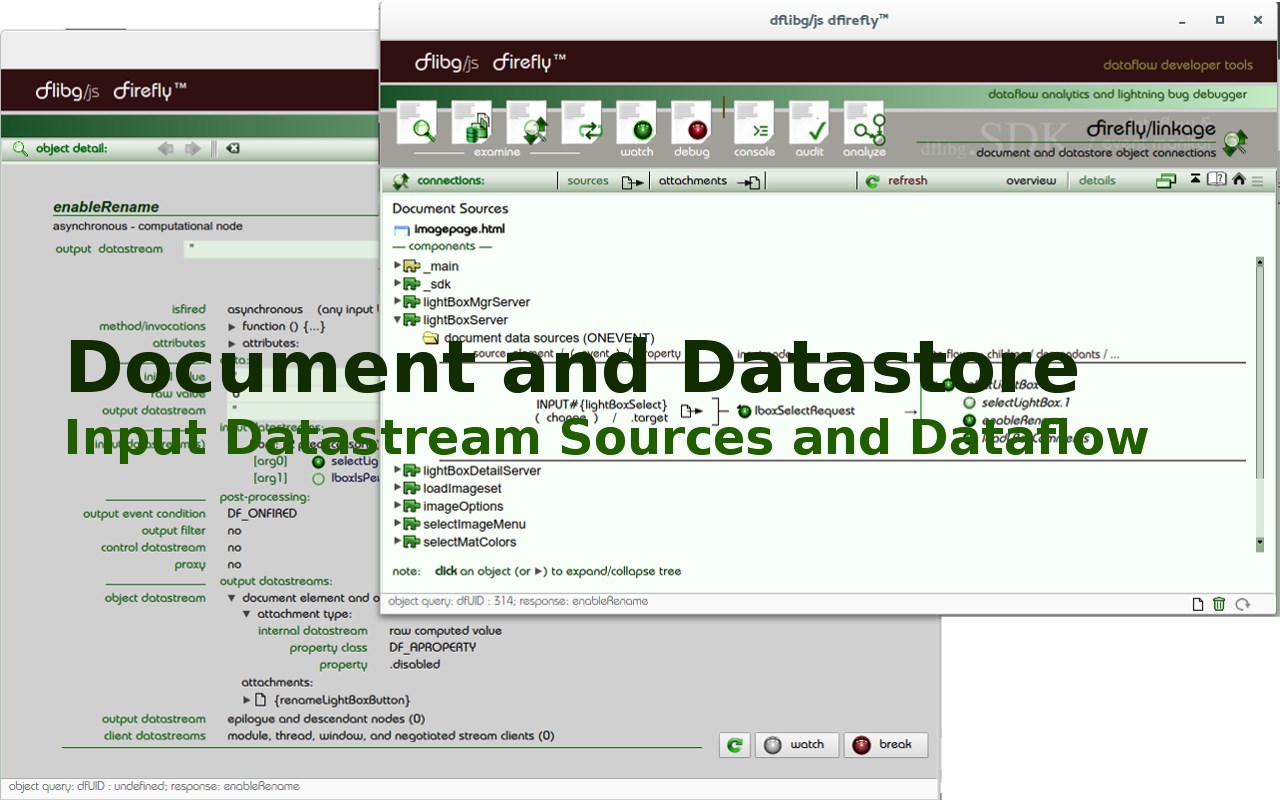

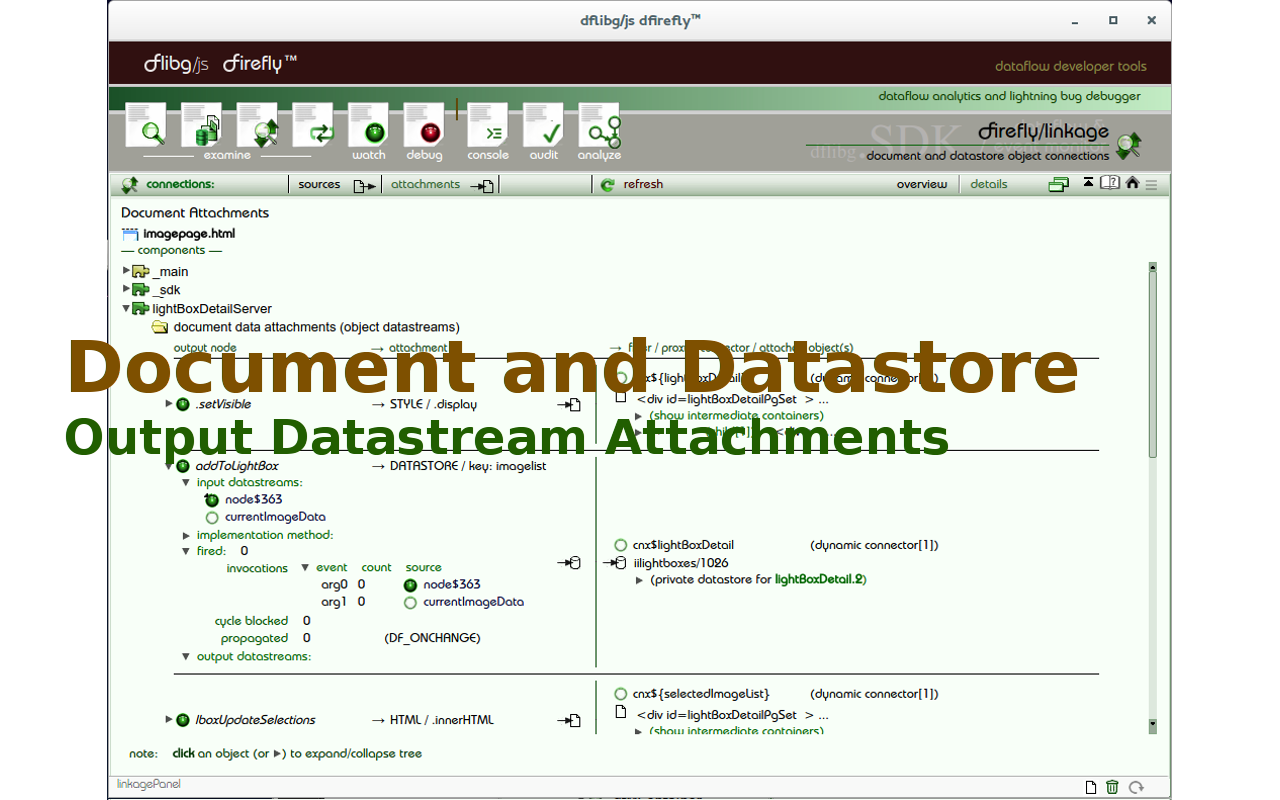

    connections - examines datastream connections with the document and datastores - datastream sources and
        their dataflows into the dataflow engines, and document elements/properties to which datastreams are attached.
    networks - inspects streams and dialogues: client datastreams - datastreams directed
        to another module, window, tab; streams - conduits for datastreams negotiated
        between modules, windows, and even an application and an extension; proxies -
        nodes whose promise is a stand-in for a remote server, a promise for a dialogue
        with another module, application, etc.

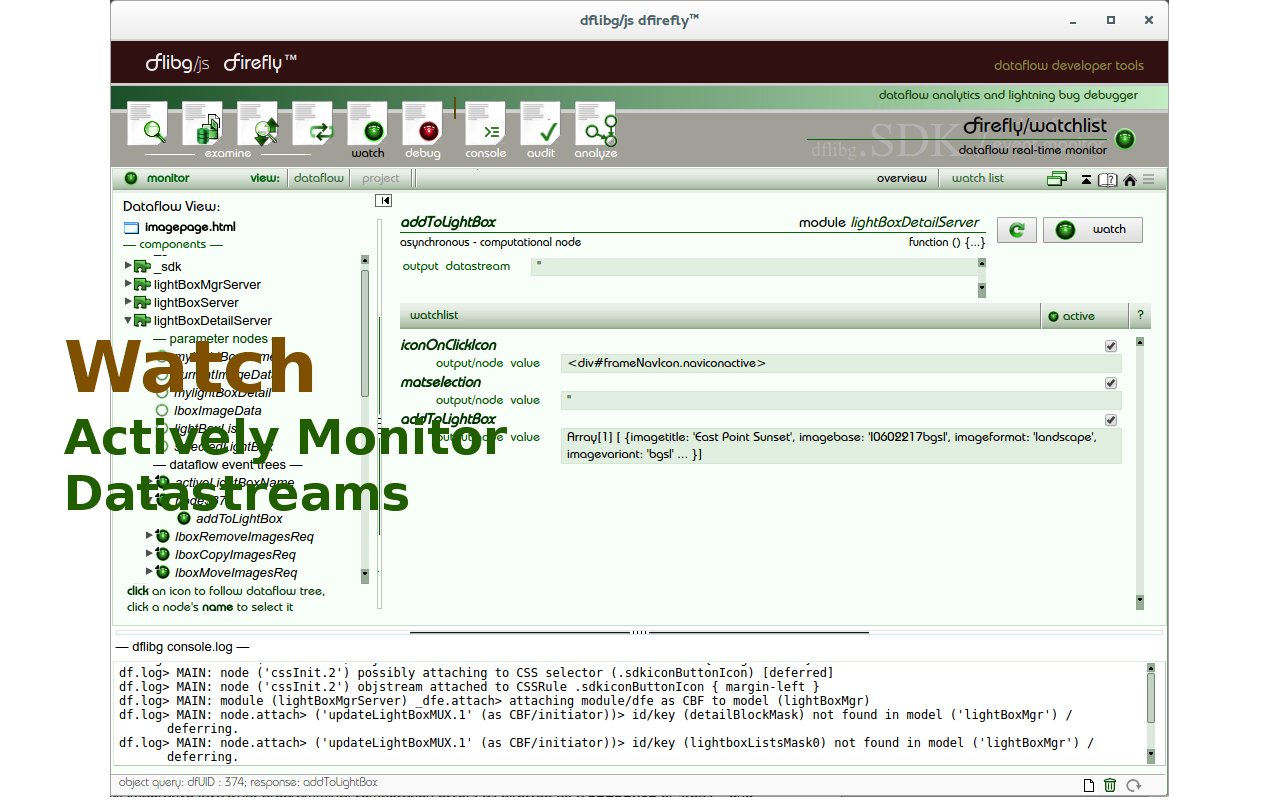

dfirefly - watch:
    monitor individual datastreams - browse the dataflow graph/tree and select individual
    datastreams to watch live.
dfirefly - debug:
    browse and set dataflow breakpoints in the application; step through and over dataflow
    propagations; examine the state of all components in the dataflow event thread.

dfirefly - audit:
    create and examine dataflow lint reports for individual  modules and the application.
    generate an unresolved references report.

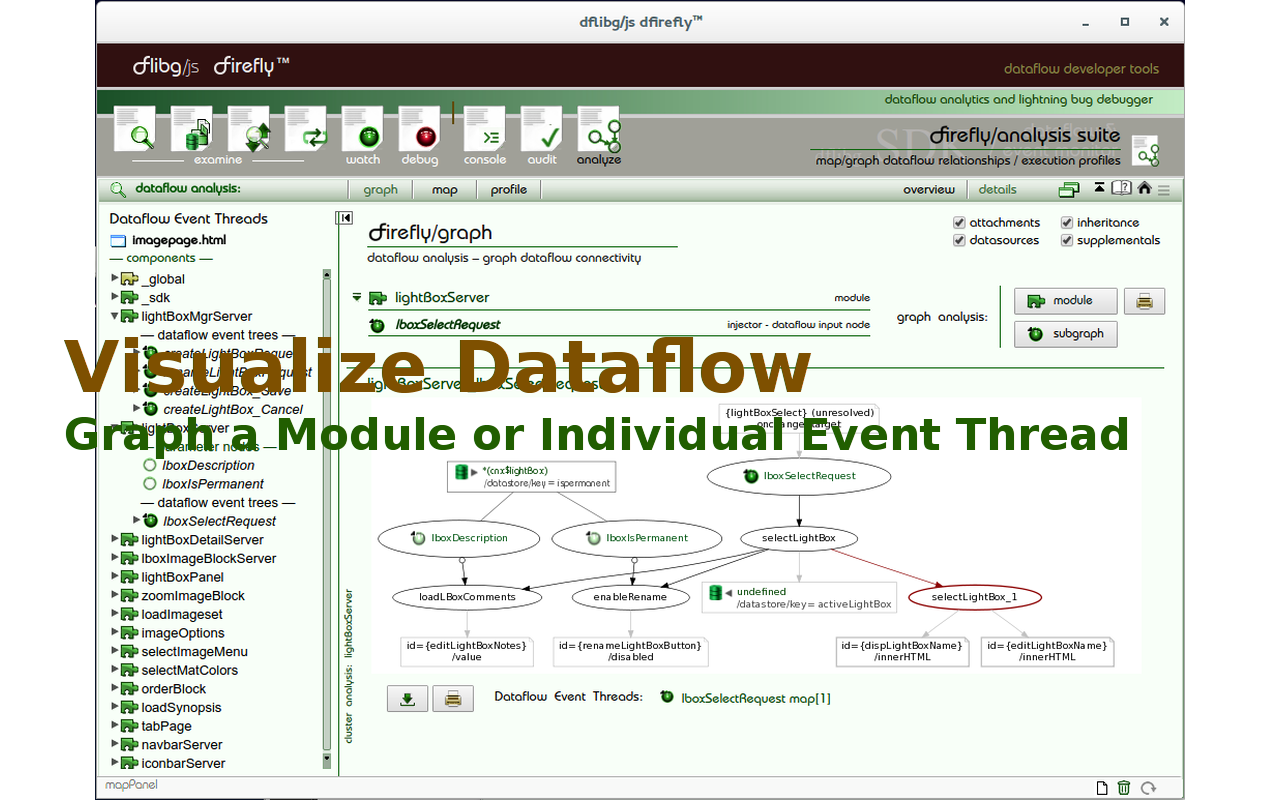

dfirefly - analyze:
    visualize dataflow - generate dataflow graphs showing how data flows through the
        application - from where it originates to how it effects document elements, datastores,
        and more; selectively show data sources, sinks, data inheritance, etc.
    map dataflow - generate a dataflow cluster analysis and a DOT language representation.
    profile - (preliminary) - generate a module-relative computational cost analysis.
dfirefly - console:
    although the console can not yet poke at and modify dataflow, it does include a
    dataflow log 'drawer' (that can be opened in any panel).  the dataflow log shows
    compilation messages, warnings and errors from the library.

HOW DO I LEARN MORE -

Additional overview information is available by opening www.dflibg.org/sdkfirefly.html**
This shows dfirefly's panels / overview documentation / panel detail nodes, etc.,
but without any content (since it is not connected as an extension to a web page).
Check out the overview menu item in the debug panel as an introduction as to what is possible with a dataflow breakpoint debugger (including a semi-live sample).

Because dflibg/js dfirefly is itself written as a dflibg/js-based dataflow application, dfirefly can be
be used to inspect dfirefly's front-end, sdkfirefly.html.  Explore / inspect -

    install the extension and then open sdkfirefly.html.  The dfirefly page-action icon will
    appear.  Click on that icon and see a demonstration of the SDK live.
